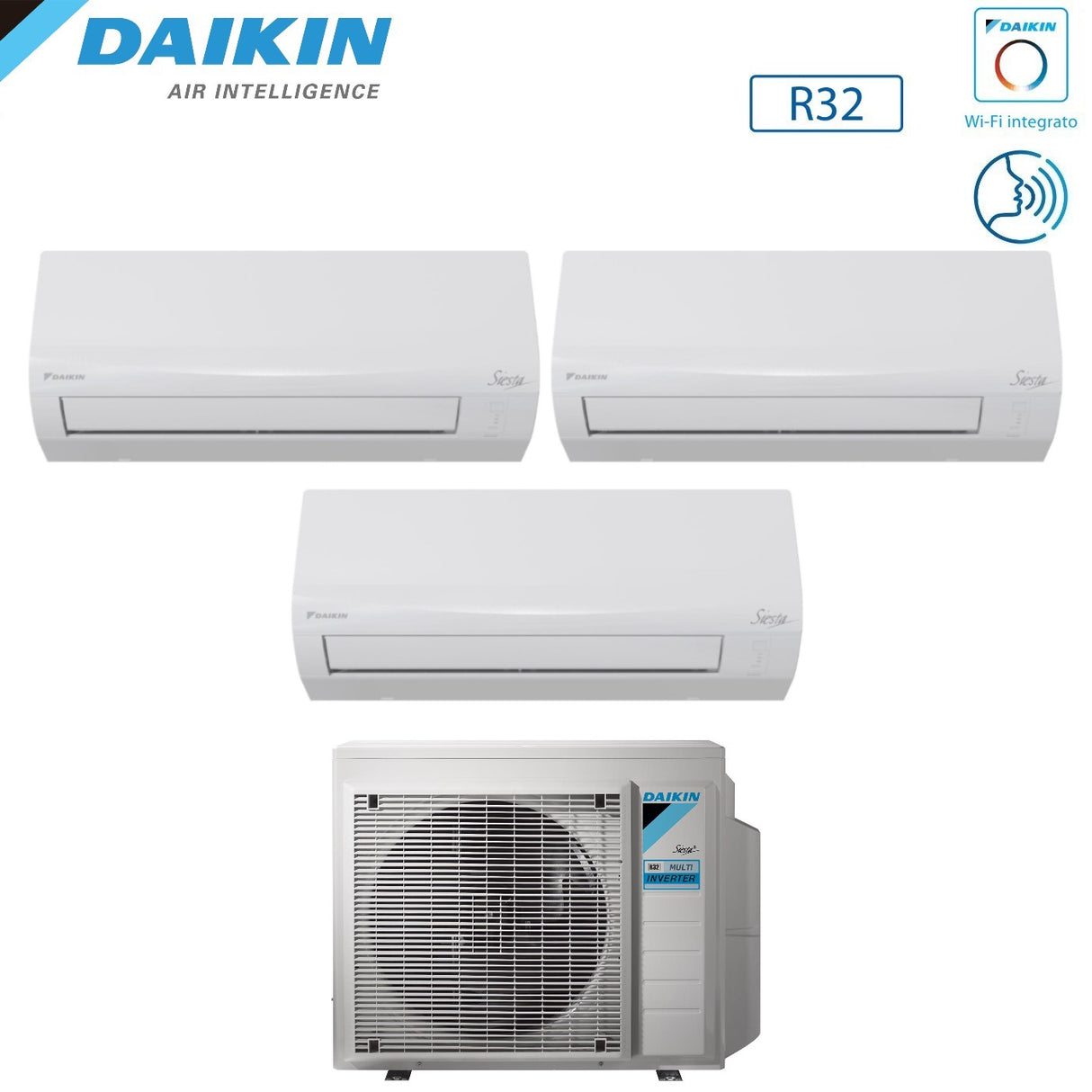

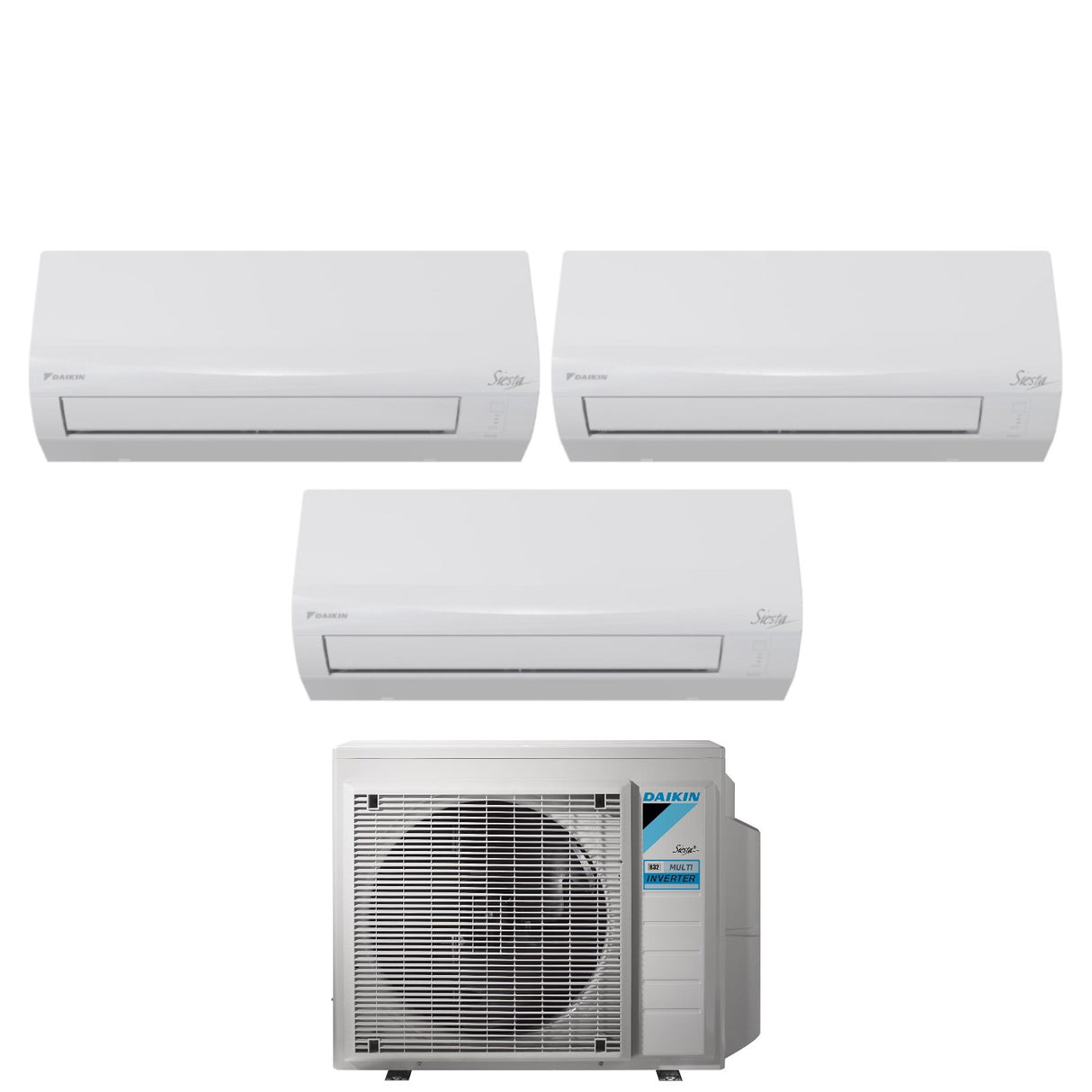

Daikin Trial Split Inverter Air Conditioner SIESTA 9+9+9 series with 3AMXF52A R-32 Wi-Fi Optional 9000+9000+9000

Technical features

Internal Units

Model

• Internal Unit Catalog Code: 3x ATXF25A
• Power: 9000 Btu
• Air flow: 8.1 m ²
• Sound Power: 55 dB(A)
• Sound Pressure: 20 ~ 40 dB(A)
• Internal Unit Dimensions (HxWxD): 286x770x225 mm
• Internal Unit Weight: 8.5 Kg
• Optional Wi-Fi card (Code BRP069A45/B45 )

Model:

• Catalog code: 3AMXF52A
• Max combinable internal units: 3

Energy efficiency:

• SEER: 7.20
• SCOP: 4.03
• Cooling Energy Efficiency Class: A++
• Heating Energy Efficiency Class: A+

Performance:

• Cooling Capacity: 5.2 kW
• Heating Capacity: 6.8 kW
• Minimum sound pressure level Cooling: 46 dB(A)
• Minimum sound pressure level Heating: 47 dB(A)
• Nominal sound power level: 59 dB(A)

• Operation range:

• - Cooling: -10° ~ 46° C
• - Heating: -15° ~ 24° C

Dimensions and weight:

• External Unit Dimensions (HxWxD): 734x1033x385 mm
• External Unit Weight: 57 kg

Multisplit Siesta by Daikin allow you to connect up to three internal units, even of different sizes, to a single external unit. An ideal solution for air conditioning two/three rooms, even with different temperatures, saving on installation and management costs. Daikin's robust and reliable multi outdoor units work thanks to a Swing inverter compressor , known for its silence and high energy efficiency . In cooling mode, it is possible to activate the Night function which, during sleep hours, automatically reduces the operating sound level of the unit by 3 dB(A).

R-32 More Efficiency and Eco-Friendly

Daikin uses R-32 , a refrigerant that leads to lower CO ₂ emissions. This means the units have a lower global warming potential and are generally more efficient. For the benefit of the environment!

The outdoor units are equipped with a swing -type compressor, known for its low noise and high energy efficiency characteristics.

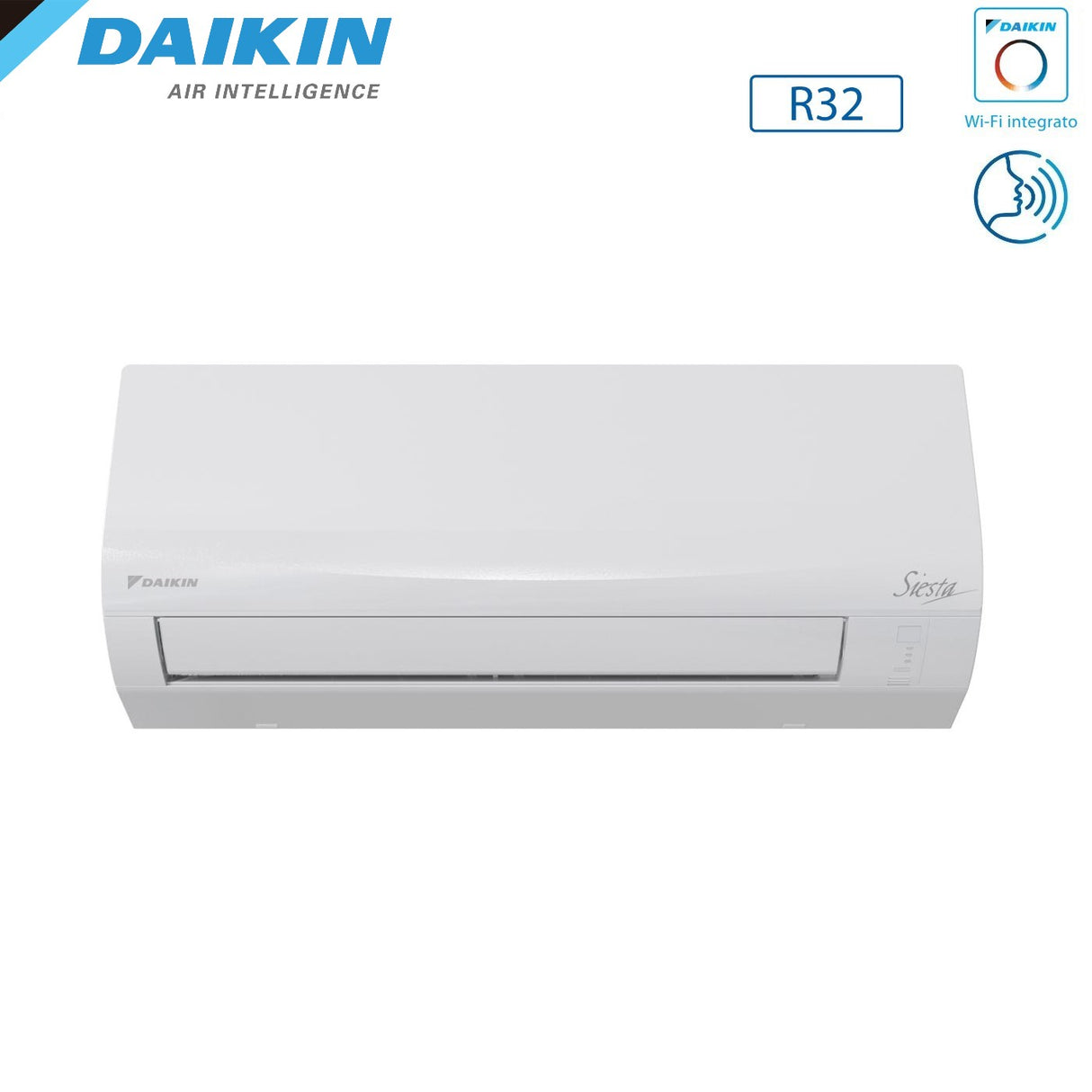

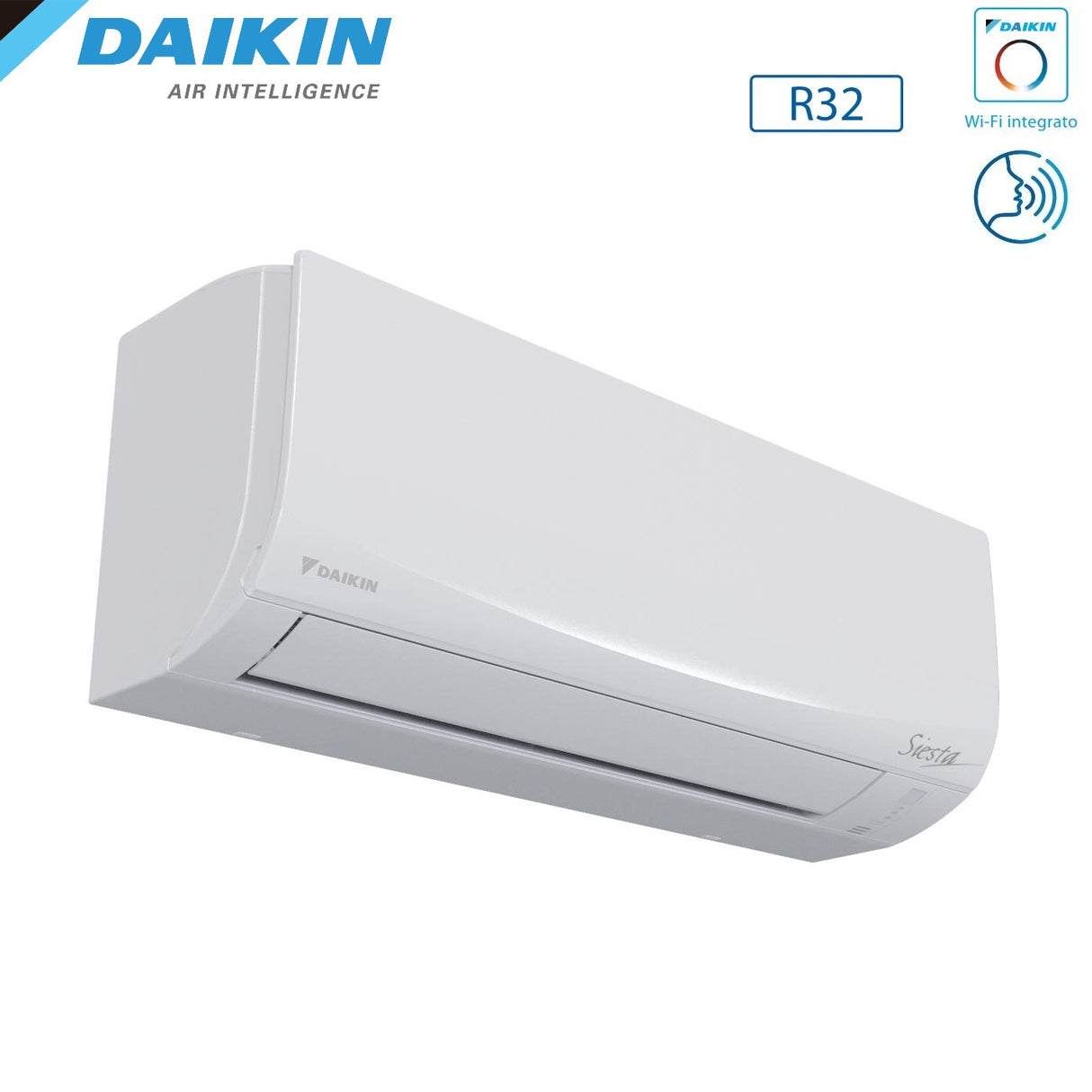

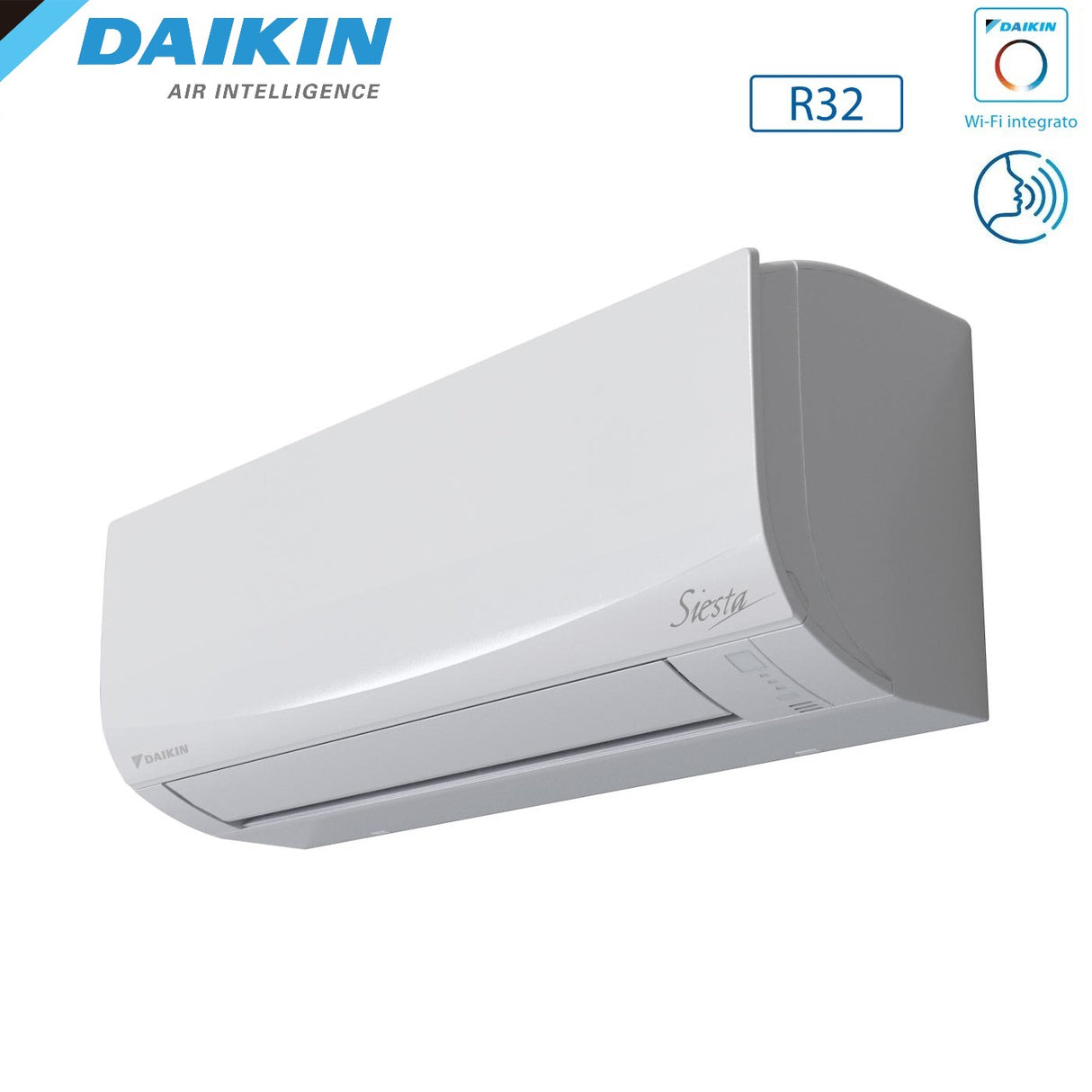

Daikin Siesta ATXF-A Wall-mounted unit with low energy consumption and pleasant comfort

Through an extremely elegant and discreet design, with extremely compact dimensions, to match any type of furniture. Not only ecology and design, the performance of the air conditioner is managed by very high technology, with innovative functions such as the built-in Smart management which allows you to control and manage your air conditioner conveniently via your Smartphone by downloading the appropriate Daikin App

Voice Control

The Daikin Residential Controller application is designed for those who live a busy life and want to manage their system via smartphone. To further increase comfort and convenience, the Daikin Residential Controller app is now available with voice control. The ability to control the application hands-free cuts down on clicks and allows for faster management of units than ever before. Transversal and multilingual, voice control can be combined with smart speakers, such as Google Assistant and Amazon Alexa

Unit Always Connected

The unit can be managed via the new Daikin Residential Controller App and compatible with Amazon Alexa and Google Home voice assistants. The Wi-Fi connection is guaranteed thanks to the SD card integrated into the unit

Programming

Set a schedule to define system operating times, and create up to six different actions per day

Program the room temperature and operating mode

Enable vacation mode to save on energy costs

Monitoring

Get a complete overview of system performance and energy consumption

Check the system status

Access energy consumption graphs (daily, weekly, monthly)

Check

Customize the system to fit your lifestyle and year-round comfort needs

Change the room temperature

Activate Powerful mode to enhance operation

The availability of functions depends on the system type, configuration and operating mode. The app features are only available if both the Daikin system and the app use a reliable internet connection

Characteristics

• Combination only possible with multi outdoor units

• Daikin Residential Controller : ability to control the indoor unit from anywhere via app, local network or Internet

• Voice command via Amazon Alexa or Google Assistant to control main functions such as setpoint, operating mode, fan speed etc

• Quiet operation down to just 20 dBA

• Choosing an R-32 product reduces the environmental impact by 68% compared to R-410A systems and leads to a direct reduction in energy consumption thanks to high energy efficiency

Advantages:

> Multi Application: Possibility of connecting up to 5 internal units, even if of different capacities, to a single external unit. Each of the indoor units can be operated individually within the same cooling or heating mode

> Daikin Residential Controller: Control the indoor climate from anywhere via smartphone or tablet

> Energy-saving standby mode: Energy consumption is reduced by approximately 80% in standby mode

> Econo Mode: Reduces power consumption, making it available for other applications that require high power. It also saves energy

> Ventilation Only: The unit can also be used in ventilation only mode, without cooling or heating

> Comfort Mode: Guarantees optimal operation without generating annoying air currents, preventing cold or hot air from being blown directly on people

> Powerful mode: Allows rapid cooling or heating of the environment; Once Powerful mode is turned off, the unit returns to the preset mode

> Automatic operating mode switching: Automatically selects the cooling or heating mode to maintain the set temperature

> Indoor Unit Silent Function: the "Silent" button on the remote control allows you to reduce the noise emitted during operation of the indoor unit by 3dB(A)

> Automatic Vertical Oscillation: Possibility of selecting the automatic vertical movement of the delivery deflectors, to make the air flow and temperature distribution uniform throughout the room

> Automatic Fan Speed ​​Adjustment: Automatically selects the fan speed to reach or maintain the set temperature

> Fan Speed ​​Steps: Allows you to select different fan speed values ​​(2 steps)

> Dehumidification program: Reduces air humidity by avoiding excessive cooling

> Air Filter: Eliminates dust particles dispersed in the air, improving air quality

> 24 Hour Timer: Can be set to start the unit at any time, within a 24 hour period

> Infrared Remote Control: Allows remote control of the air conditioning functions

> Auto Restart Function: After a power failure, the unit automatically restarts with the original settings

> Self-diagnostics: Simplifies maintenance by indicating system malfunctions or operating anomalies

• peso: 110.0 kg
• classe energetica raffreddamento: A++
• classe energetica riscaldamento: A+
• costospedizionecad: IT49;AD165;AT106;BE111;BG136;HR123;DK175;EE170;FR144;DE102;LV131;LT123;LU80;NL119;PT114;CZ90;SK101;SI101;ES104;SE212;HU85;CH168;
• gas: R-32
• lunghezza: 1
• marca: Daikin
• modello: ATXF 9+9+9 52
• peso in kg: 110
• potenza btu: 9000+9000+9000
• superficie riscaldabile mq: 25/25/25
