Mitsubishi Electric
24-month Italian warranty
Energy class: A+
Heating energy class: A+
Cooling energy class: A++
SKU: MSZ-HR35VF

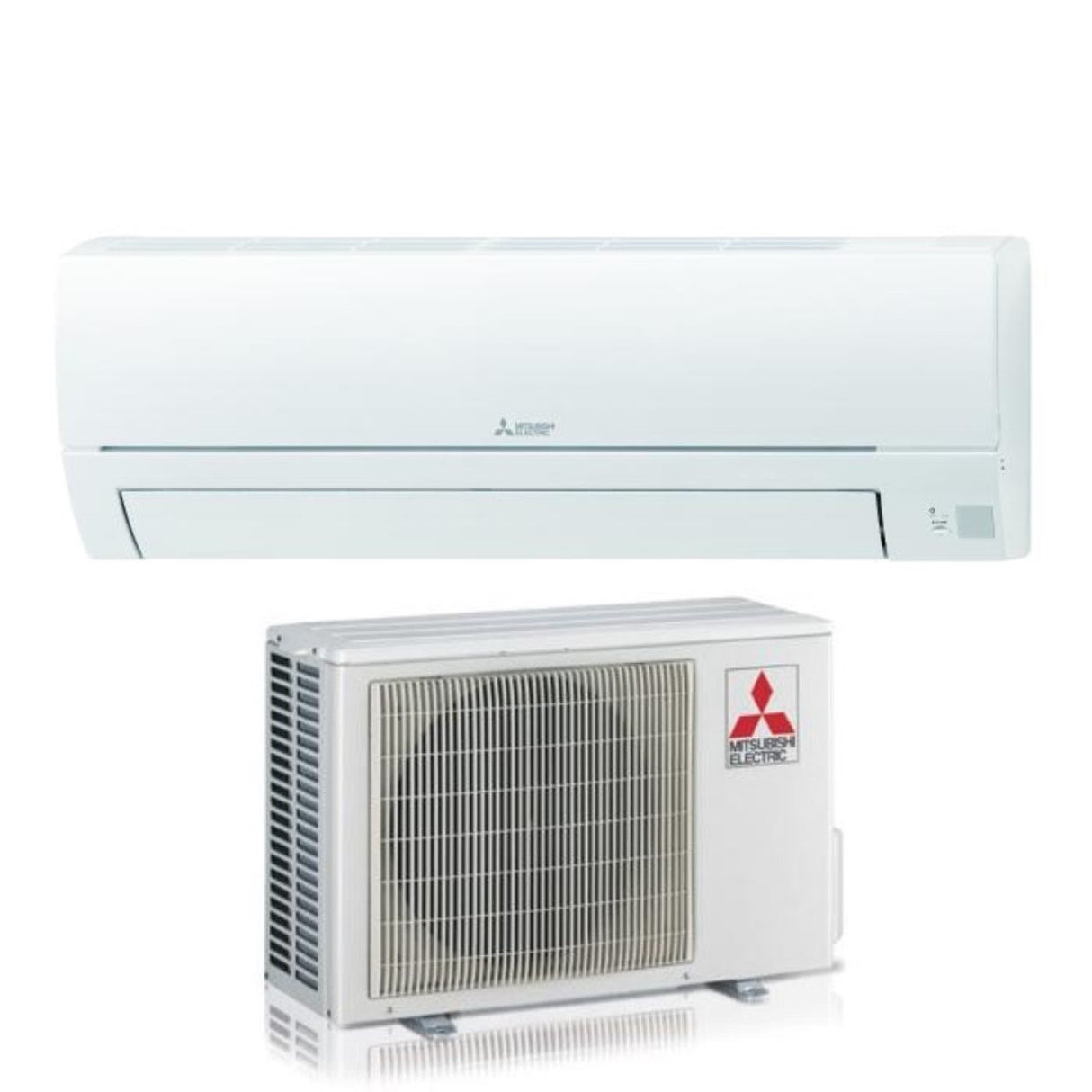

Mitsubishi Electric Inverter Air Conditioning SMART MSZ-HR series 12000 Btu MSZ-HR35VF R-32 Wi-Fi Optional Class A++/A+

€512,00 VAT included
Tax included Shipping calculated at checkout.

Come funziona la spedizione

I costi di spedizione variano a seconda del peso e della modalità di spedizione dell'ordine.

I nostri servizi di spedizione:

  • Spedizione standard: consegna stimata dai 2 ai 5 giorni lavorativi

Consulta le tabelle per i prezzi della spedizione standard per l'Italia e per le Isole Minori e Zone Disagiate.

Servizio clienti

Il nostro servizio di assistenza è dedicato a fornire supporto ai nostri clienti per qualsiasi problema o domanda che possano avere prima o dopo l’acquisto dei nostri prodotti.

Utilizza il canale di comunicazione diretta per parlare con un nostro operatore, oppure inviaci una mail ad uno degli indirizzi elencati nella pagina contattaci.

Il nostro team di assistenza clienti è composto da professionisti altamente qualificati e sempre pronti ad aiutare i clienti a risolvere qualsiasi problema o rispondere a qualsiasi domanda in modo rapido ed efficiente. Ci impegniamo a garantire la massima soddisfazione del cliente e a fornire un servizio di assistenza post-vendita di altissima qualità. Quindi, se hai bisogno di assistenza, non esitare a contattarci; saremo lieti di aiutarti in ogni modo possibile.

Description

Technical features

Model:
  • Indoor Unit catalog code: MSZ-HR35VF
  • Outdoor Unit catalog code: MUZ-HR35VF
  • Power: 12000 Btu
  • Wi-Fi Optional: MAC-587IF-E

Energy efficiency:

  • SEER : 6.2
  • SCOP: 4.3
  • Cooling Energy Efficiency Class: A++
  • Heating Energy Efficiency Class: A+
  • Annual energy consumption in Cooling: 191 kWh/a
  • Annual energy consumption in Heating: 781 kWh/a

Performance

  • Cooling Capacity: 3.4 kW
  • Heating Capacity: 3.6 kW
  • Power Absorbed Cooling: 1.21 kW
  • Power Absorbed Heating: 0.975 kW
  • Indoor Unit Treated Air: 3.3 ~ 10.5 m 3 /min
  • Indoor unit sound power: 60 dB(A)
  • External unit sound power: 64 dB(A)
  • Indoor unit sound pressure: 21 ~ 46 dB(A)
  • External unit sound pressure: 51 dB(A)
Electrical data
  • Power (V,Hz, Ø): 220~240/50/1
  • Refrigerant gas: R-32
  • Operation range:
    - Cooling: -10° ~ +46° C
    - Heating: -10 ~ +24° C
Installation Data
  • Liquid pipe diameter: 6.35 mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Maximum length of pipes: 20 m
  • Maximum height difference Internal Unit / External Unit: 12 m

Dimensions and weight

  • Internal Unit Dimensions (HxWxD): 280x838x228 mm
  • Internal Unit Weight: 8.5 Kg
  • External Unit Dimensions (HxWxD): 538x699x249 mm
  • External Unit Weight: 24 kg

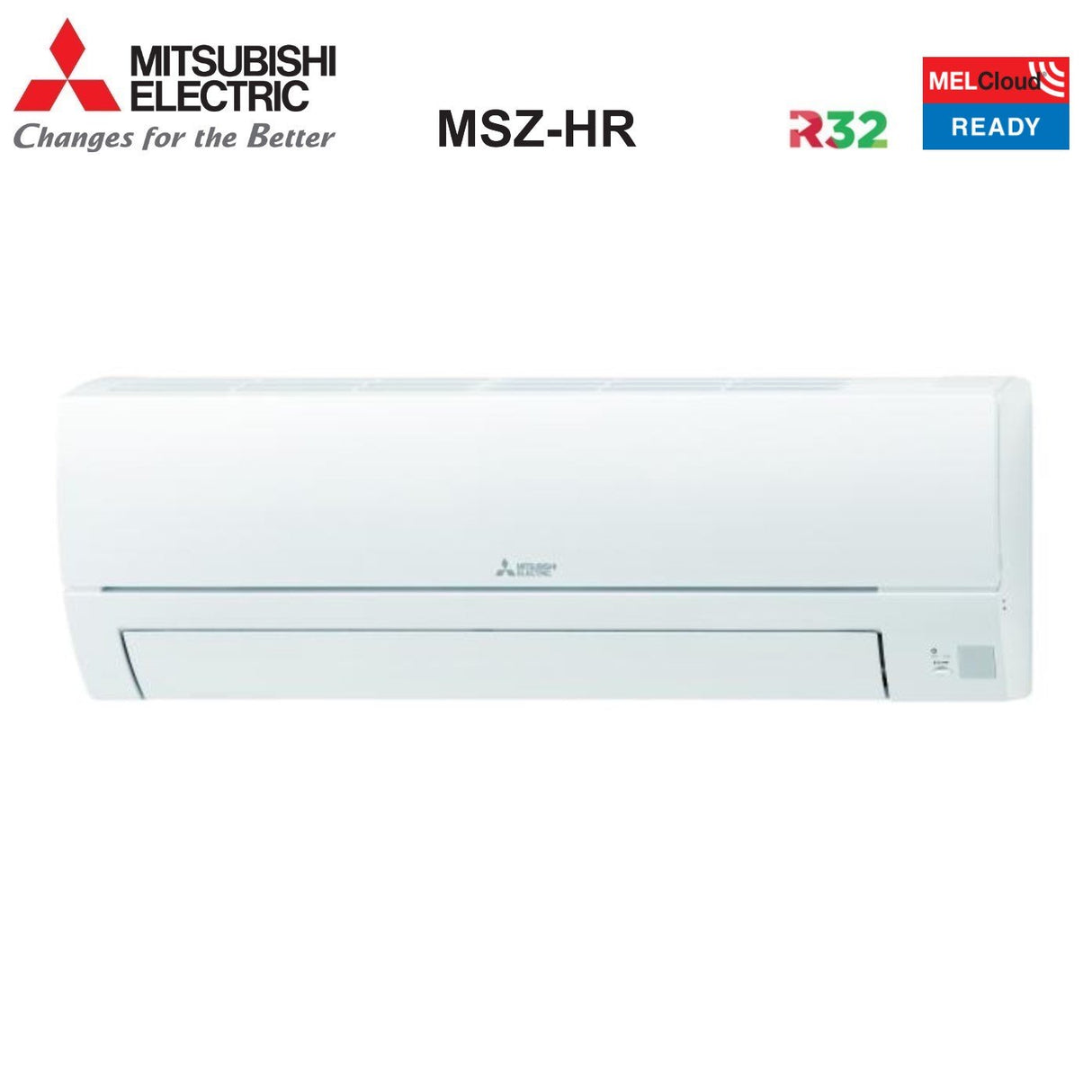

Mitsubishi Electric Smart HR Series A compact line designed for small spaces


DC Inverter

The Inverter system is an electronic device that allows you to efficiently vary the speed of the compressor and, consequently, the power supplied by the air conditioner based on the cooling or heating request. Compared to traditional fixed speed air conditioners (On/Off), inverter air conditioners reach the required temperature sooner and keep it stable, without annoying changes, to the benefit of comfort and electricity consumption.

R-32

The R32 refrigerant gas complies with European directives on the reduction of the greenhouse effect, presenting a lower GWP than R410A and not damaging the ozone layer. The advantages?

  • High energy efficiency
  • Reduction in the amount of refrigerant gas used
  • Reduced environmental impact
  • Easily chargeable and recoverable as pure gas
  • Low toxicity and flammability

A compact line designed for small spaces

The MSZ-HR units guarantee comfort and low electricity consumption, with minimal noise emissions without sacrificing compact dimensions.

Compact indoor units

The dimensions of the internal units of the entire range are particularly compact.

This allows installation even in rooms where the space available is limited.

Unità Compatte HR

Maximum silence for maximum comfort

The quality of the environment in which we stay also depends on the perceived noise level. Mitsubishi Electric air conditioners help maintain the highest acoustic comfort by reducing noise emissions to a minimum.

Comfort HR

MELCloud, Wi-Fi control

MELCloud is the new Wi-Fi control for your Mitsubishi Electric system. By taking advantage of the support of the cloud (the "Cloud") to transmit and receive information and the optional dedicated Wi-Fi interface (MAC-567IF-E), you can easily control your system wherever you are via your PC, tablet or the smartphone; all you need is an internet connection. The MELCloud service was created to have maximum compatibility with PCs, Tablets and Smartphones thanks to dedicated Apps or via Web Browser.

MelCloud HR

Beyond the A++/A+ class

Operating economy is the great advantage of Mitsubishi Electric air conditioners.

Thanks to the careful design of all components and the use of cutting-edge technologies, energy efficiency reaches extraordinary levels even on a seasonal basis.

In particular, the Smart Line obtains SEER and SCOP (seasonal efficiency indices) values ​​which allow it to reach values ​​beyond Class A++/A+ across the entire range .

Classe HR

HR


Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

Scheda Tecnica

  • peso: 35.0 kg
  • classe efficienza energetica: A+
  • classe energetica raffreddamento: A++
  • classe energetica riscaldamento: A+
  • costospedizionecad: IT25;AD113;AT73;BE75;BG88;HR89;DK125;EE122;FR94;DE63;LV94;LT88;LU59;NL68;PT82;CZ66;SK73;SI74;ES75;SE131;HU56;CH135;
  • gas: R-32
  • marca: Mitsubishi Electric
  • metri quadri : 25-40 m2
  • modello: MSZ-HR35VF
  • potenza btu: 12000
  • superficie riscaldabile mq: 35
